宇宙光電TXD-1000/2000/3000系列觸控模塊簡介

TXD-1000/2000/3000系列觸控模塊采用宇宙光電TR-4000四線電阻式觸控面板，符合高穿透率、彈性輸入方式及低耗電需求的應用。高品質的LCD模塊主要來自世界大廠友達光電及LG-Philips等。TXD系列觸控模塊提供多樣性3.5"到10.4"尺寸，可應用在PDA/PDA手機、汽車應用、電子書及彩券機等等。該款觸摸屏控制模塊有許多優點：

高品質液晶模塊與觸控面板
搭配世界大廠認可的TR-4000四線電阻式觸控技術
可使用手指、手套或觸控筆方式輸入
提供3.5”~10.4”不同尺寸組合
應用范圍:PDA∕PDA手機,電子書,汽車應用,彩券機
低耗電

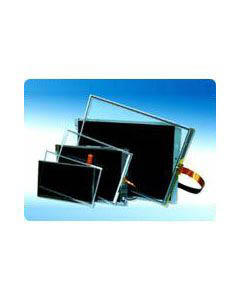

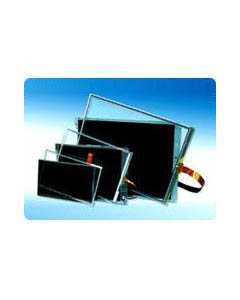

宇宙光電TXD-1000/2000/3000系列觸控模塊

宇宙光電TXD-1000/2000/3000系列觸控模塊技術參數

SIZE	3.5"	5.6"	6.4"	6.5"
Model Name	TRD-1035R(U)	TRD-1056R(U)	TRD-2064R(U)	TRD-3065R(U)
TOUCHSCREEN SENSOR
Sensor Model	TR-4000 Four-Wire Resistive
DISPLAY
LCD Module	3.5" a-Si TFT LCD	5.6" a-Si TFT LCD	6.4" a-Si TFT LCD	6.5" a-Si TFT LCD
Resolution (W x H)	480 x 234 dot	960 x 234 dot	640 x RGB x 480 dot	400 x RGB x 234 dot
Active Area (W x H)	72 x 50.544 mm	113.3 x 84.7 mm	129.6 x 97.44 mm	143.4 x 79.3 mm
Dot Pitch (W x H)	0.150 x 0.216 mm	0.118 x 0.362 mm	0.0675 x 0.203 mm	0.1199 x 0.3385 mm
Color Configuration	RGB Delta	RGB Stripe	Stripe	RGB Vertical Stripe
Brightness w/o Touchscreen	250 cd/㎡	300 cd/㎡	150 cd/㎡	374 cd/㎡
Brightness w/ Touchscreen	208 cd/㎡	249 cd/㎡	125 cd/㎡	451 cd/㎡
Contrast Ratio	150 : 1	150 : 1	400 : 1	400 : 1
Response Time	20ms (Rising), 30ms (Falling)	15ms (Rising), 20ms (Falling)	15ms (Rising), 25ms (Falling)	10ms (Rising), 30ms (Falling)
Viewing Angle	+40°~-40°(L/R), +10°~-30°(U/D) (Min.)	+45°~-45°(L/R), +10°~-30°(U/D) (Min.)	+45°~-45°(L/R), +15°~-35°(U/D)	+65°~-65°(L/R), +50°~-65°(U/D)
Dimensions (WxHxD)	83 x 60.5 x 4.5 mm	126.5 x 100 x 6.8 mm	159 x 117 x 6.4 mm	157.2 x 89.7 x 8.0 mm
Weight	TBD	145 ± 10 g	165 ± 10 g	165 g (Typical)
Warranty	1 Year LCD Module 1 Year TR-4000 Sensor 5 Years TC-400R(U) Controller

SIZE	7"	7"	8.4"	10.4"
Model Name	TRD-1070R(U)	TRD-3070R(U)	TRD-1084R(U)	TRD-1104R(U)
TOUCHSCREEN SENSOR
Sensor Model	TR-4000 Four-Wire Resistive
DISPLAY
LCD Module	7" a-Si TFT LCD	7" a-Si TFT LCD	8.4" a-Si TFT LCD	10.4" a-Si TFT LCD
Resolution (W x H)	800RGB x 480 dot	480 x RGB x 234 dot	800 x 600 dot	800 x 600 dot
Active Area (W x H)	152.4 x 91.4 mm	154.08 x 86.58 mm	170.4 x 127.8 mm	211.1 x 158.4 mm
Dot Pitch (W x H)	0.1905 x 0.1905 mm	0.107 x 0.370 mm	0.123 x 0.123 mm	0.264 x 0.264 mm
Color Configuration	RGB Stripe	RGB Vertical Stripe	RGB Vertical Stripe	RGB Vertical Stripe
Brightness w/o Touchscreen	400 cd/㎡	400 cd/㎡	150 cd/㎡	350 cd/㎡
Brightness w/ Touchscreen	332 cd/㎡	332 cd/㎡	125 cd/㎡	291 cd/㎡
Contrast Ratio	300 : 1	400 : 1	250 : 1	350 : 1
Response Time	12ms (Rising), 18ms (Falling)	10ms (Rising), 30ms (Falling)	20ms (Rising), 30ms (Falling)	10ms (Rising), 25ms (Falling)
Viewing Angle	+60°~-60°(L/R), +40°~-60°(U/D)	+65°~-65°(L/R), +65°~-50°(U/D)	+40°~-40(L/R), +30°~-10°(U/D)	+60°~-60°(L/R), +40°~-60°(U/D)
Dimensions (WxHxD)	165 x 104 x 6 mm	166 x 100 x 7 mm	203.0 x 142.5 x 5.7 mm	243 x 184 x 11 mm
Weight	170 ± 10 g	155 g (Typical)	230 ± 10 g	510 g
Warranty	1 Year LCD Module 1 Year TR-4000 Sensor 5 Years TC-400R(U) Controller
*Specifications are subject to change without notice.
